Product Name:

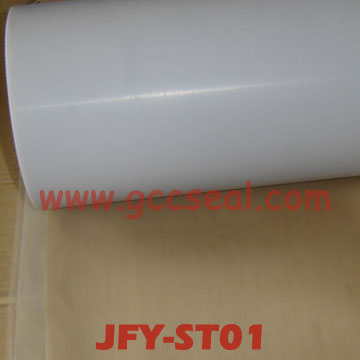

PTFE Sheet
Details
: PTFE Sheet
Molded Sheet (Include bridge bearing slide), Skived Sheet
Characteristic of the products
PTFE molded sheet is manufactured by molding with PTFE granular resin. PTFE is the most chemical resistance of all knows plastics. It does not age. It has the lowest coefficient of friction of all know solid materials.
Use of the products
It can be used to make corrosion-resistant liner, seal, lining and gasket, scrap, guide rail, dielectric material for different frequency, bridge bearing slide.
Products index
Project |
Unit |
Standard |
Tensile strength |
MPa |
鈮15.0 |
Ultimate elongation |
% |
150 锝400 |
Apparent density |
g /cm 3 |
2.2 锝2.3 |
Dialectic strength |
KV/mm |
10 |
Resistance of surface (Working voltage 500V) |
惟 |
3.7 x 10 16 |
Product specification (Unit: mm)
Name |
Thickness |
Public errand |
length x width |
Mould
Press Sheet |
1锝70 |
卤 0.30锝灺 0.50 |
250 x250 |
1锝70 |
卤 0.30锝灺 0.50 |
300 x300 |
1锝70 |
卤 0.30锝灺 0.50 |
500 x500 |
1锝70 |
卤 0.30锝灺 0.50 |
600 x600 |
1锝70 |
卤 0.30锝灺 0.50 |
800 x800 |
2锝60 |
卤 0.30锝灺 0.50 |
1000 x 1000 |
2锝60 |
卤 0.30锝灺 0.50 |
1200 x 1200 |
3锝60 |
卤 0.30锝灺 0.60 |
1200 x 1800 |
3锝60 |
卤 0.30锝灺 0.60 |
1000 x 2000 |
3锝60 |
卤 0.30锝灺 0.60 |
1200 x 2000 |
There are two types of bridge bearing slide, rectangular or round shaped, which can be made to order.
Name |
Thickness |
Width |
Length |
Skived Sheet |
0.5锝3.0 |
900 |
鈮200 |
1000 |
1200 |
2000 |
|
