Product Name:
Graphite packing with aramid fiber corner
Details :

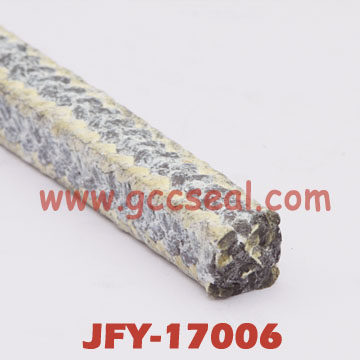

JFY-17006 Graphite packing with aramid fiber corner



Description:

Lattice braided flexible graphite packing with aramid fiber corner reinforced. It offers the strength of aramid fiber, the thermal dissipating and low friction property of graphite. The graphite particles in packing enhance the heat exchange effective. However, due to the toughness of Aramid we recommend shaft (sleeve) hardness > 60 HRC.



Application areas:

Multipurpose packing widely used in piston pumps, mixing agitator, the reaction to push, industrial and chemical industries with the valves.



Application media:

For a variety of media, including corrosive medium: hot and cold water, steam, solvents, oil, grease, dilute acids and alkalis, salt water, sewage and so on.

Technical data:





Rotating

Reciprocating

Valves

Pressure

3 Mpa

10 Mpa

20 Mpa

Shaft speed:

22 m/s rotary

Temperature

-200鈩僼o +280鈩

PH range

0~14

Other reinforced materials are also available.



Package:

5kg/roll, 10kg/roll.

Supply OEM products.
